3.10. `process` section

A process-object within an ln config file is an exact description of how to start & stop a process:

on which node/host to start the process on
which environment to pass to the process
a shell-commandline to start the process OR the name of the executable plus arguments to pass
how to stop that process
whether the process is expected to stay running or to terminate on its own
which text-encoding the processes uses for its console output
whether to log the output of that process to some log file
does the process output some line to signal that its ready / finished starting up? OR does the process have a constant startup time?
are there other processes that need to be started & finished before trying to start this process?
are there other processes that need to be ready (and stay ready) before this process can be started?
are there other processes that should be started as soon as this process is ready?

A process needs to have a unique name within the ln-config file.

syntax:

PROCESS_DEFINITION := "process " + PROCESS_NAME + "\n" + PROC_SETTINGS
PROC_SETTINGS := PROC_SETTING + [ PROC_SETTING ]*
PROC_SETTING := SETTING_NAME + ": " + SETTING_VALUE + "\n"

PROCESS_NAME := EVALUATED_STRING
SETTING_NAME := STRING
SETTING_VALUE := EVALUATED_STRING | ( "[" + EVALUATED_MULTILINE_STRING + "]" )

example:

process just show date & time
node: localhost
command: /bin/date
add flags: no_error_on_successful_stop

this will add a new process named just show date & time to the ln-config. we decided we want to run this process on node localhost which is always the same host the ln-manager is running on. /bin/date is the absolute pathname to an executable. in this case it will simply print one line of text and then stop itself.

this process will be started with very few environment variables set. see the environment setting.

valid SETTING_NAME’s are:

3.10.1. command

type: required, string, command line

command to execute to start this process.

this is usually the path-name of an executable program:

process xlogo
node: localhost
flags: forward_x11
command: /usr/bin/xlogo

in case you make a typo like here:

command: /usr/bin/Xlogo

you will see an error message like this:

could not execve()
/usr/bin/Xlogo
errno 2: No such file or directory

arguments can also be specified:

command: /usr/bin/xlogo -bg blue

if you don’t want to specify an absolute path-name, but instead want to instruct your operating system kernel to search for that executable, you can use the use_execvpe-flag AND set a value for the PATH-environment-variable:

process xlogo
node: localhost
flags: forward_x11, use_exevpe
pass_environment: PATH
command: xlogo -bg blue

this way the PATH environment variable will be passed from the ln_manager’s environment to the environment of this xlogo-process.

Note

by using pass_environment: PATH it is assumed that the value of the PATH variable is also useful on whatever (possibly remote) node/computer this process is started on! for standard pathes like /usr/bin:/usr/sbin:... this is usually correct.

sometimes it is not convenient to start a single executable with arguments, but instead we want to provide a “command-line” which is interpreted by a shell (like /bin/sh, which is often a symlink to bash).

shell-command-lines can do much more than just causing a single executable to be started. they can be used to start multiple commands, one after the other:

process xlogo
node: localhost
flags: forward_x11, start_in_shell
command: echo hello world; xlogo -bg blue

this ; (semicolon) is one of the special characters that can be used in shell-command-lines – in this case first echo hello world is executed by the shell, then xlogo -bg blue (search for compound commands in man bash).

note that here we don’t need to specify the absolute path-name for xlogo as the shell will always use an execvpe-equivalent mechanism to find executable programs.

note also that we don’t have to provide a value for the PATH-environment variable here: if not specified, the shell will look for executables in a minimal set of standard locations like /usr/local/bin, /usr/bin…

for non-standard tools you should not rely on this implicitely defined list of directories which are searched. you should either explicitely specify an absolute path name of your executable, or explicitely specify a search-path like shown in this example:

process xlogo
node: localhost
flags: forward_x11, start_in_shell
add environment: PATH=/path/to/my-executables:/path/to/other/executables:...
command: echo hello world; my-special-program

this would allow the shell to find your /path/to/my-executables/my-special-program executable. the shell will output /bin/sh: my-special-program: command not found if an executable or internal-command can’t be found.

3.10.2. alt_command NAME

type: optional, string, named alternate command line

adds an additional named command line for this process. command: ... is always the primary command and implicitly gets the reserved name default.

The syntax is:

alt_command SHORT_NAME: COMMAND_LINE

Example:

template typical shell commands
alt_command bash: /usr/bin/env bash -i
alt_command ps: /bin/ps -Afl

process alternate command line
node: localhost
command: echo default command
alt_command verbose: echo this is the verbose command
alt_command silent: echo silent
use_template: typical shell commands

The order of alt_command lines is preserved, including commands that come from use_template: ... expansions.

In the ln_manager GUI, processes with alternate commands get an additional command-selection combobox in the process view and in the detached process output window. The user can select one of the configured names there, and the command entry field will show the corresponding command line.

The command entry stays editable. User edits are remembered per command name, so changing the text for verbose does not modify default or other alternate commands. When the process is started, ln_manager uses the currently selected command name and its edited value if the user changed it.

3.10.3. node

type: required, string

Name of the node where this process shall be started.

For simple local examples this is often localhost. In larger or portable setups, prefer a logical node name from node_map section, for example node: robot or node: nodeA. The node_map section then decides which physical host that logical node currently means.

If no node_map entry exists for the value, ln_manager treats it directly as a host name. An IP address is also a valid host name, but symbolic names are usually easier to maintain.

3.10.4. environment

type: list of strings

if nothing is specified, a process will be started in a nearly empty environment with only these variables set:

LN_MANAGER: you should not manually specify this value! ln-manager will compute this value and will also automatically create needed tcp-forwardings if manager and client are not within the same IP-network.
LN_PROGRAM_NAME: this will contain the unique PROCESS_NAME. the ln-client library will use this value to suggest a unique client-name to the ln-manager name. ln-manager will only set this variable if it is not already explicitely specified in the process-definition.
LN_MESSAGE_DEFINITION_DIRS: this will contain all search pathes for message definitions that the ln-manager uses (this is only useful if manager and this process share a common filesystem layout). this environment variable is only used by the The ln-generate Tool: creating interfaces for the C++ API. normal ln-clients do not read it. if already specified in the process-definition, ln-manager will append this value to the end where it should not do any harm.
LD_LIBRARY_PATH: will always include the path to libln.so where ln-manager found it (this is only useful if manager and this process share a common filesystem layout). if already specified in the process-definition, ln-manager will append its libln-path to the end where it should not do any harm.
TERM: ln-manager will set this to xterm to tell the started process which terminal control sequences to use for (curses-like) console UI’s. (ln-manager uses VTE-widgets to display the process output, VTE supports most of xterm’s control sequences) ln-manager will only set this variable if it is not already explicitely specified in the process-definition.

arbitrary additional variables can be specified in the process-definition. example:

process print env vars
node: localhost
command: /usr/bin/printenv
add flags: no_error_on_successful_stop
add environment: TERM=vt100
add environment: LICENSE_PATH=/opt/expensive-license
add environment: LN_PROGRAM_NAME=printenv

when this process is run, it should output something similar to this:

TERM=vt100
LICENSE_PATH=/opt/expensive-license
LN_PROGRAM_NAME=printenv
LD_LIBRARY_PATH=/path/to/ln_manager/libln
LN_MESSAGE_DEFINITION_DIRS=/path/to/ln_msg_def:...
LN_MANAGER=127.0.0.1:3069

in this case LN_PROGRAM_NAME and TERM was set explicitely in the process-definition so ln-manager did not change their values. LICENSE_PATH is just an example of some arbitrary environment variable added to the process environment.

Note

please notice that environment’s type is list of strings, as described in the following:

you can set this list completely at once (multiple values separated by ,):

process print env vars
node: localhost
command: /usr/bin/printenv
add flags: no_error_on_successful_stop
environment: TERM=vt100, LICENSE_PATH=/opt/expensive-license, LN_PROGRAM_NAME=printenv

this can also be spread across multiple lines:

process print env vars
#...
environment: [
   TERM=vt100,
   LICENSE_PATH=/opt/expensive-license,
   LN_PROGRAM_NAME=printenv
]

(the trailing , is needed!)

be careful to not accidentally set the environment list multiple times! only the last setting will have an effect:

process print env vars
#...
environment: [
   LICENSE_PATH=/opt/expensive-license,
   NAME=name
]
environment: SOME=value, OTHER=1

this will result in these environment variables:

SOME=value
OTHER=1
...

the is no LICENSE_PATH or NAME variable set! only the last setting of environment: VARS has effect!

especially when using templates it is often convenient to just add to the list of already set environment variables, instead of overwriting:

process print env vars
#...
add environment: TERM=vt100
add environment: LICENSE_PATH=/opt/expensive-license
add environment: LN_PROGRAM_NAME=printenv

this is usually the preferred way of adding environment variables.

for certain environment variables like PATH, LD_LIBRARY_PATH, PYTHONPATH it is often convenient to just append something to an already set value. this can be done like this:

process print env vars
#...
append environment PATH: :/usr/bin
append environment PATH: :/sbin
append environment PATH: :/usr/X11/bin:/usr/sbin
append environment LD_LIBRARY_PATH: :/usr/lib
add environment: LN_PROGRAM_NAME=printenv

this will result in these environment variables:

PATH=:/usr/bin:/sbin:/usr/X11/bin:/usr/sbin
LD_LIBRARY_PATH=/usr/lib:/path/to/ln_manager/libln
LN_PROGRAM_NAME=printenv

for bash-like shells the unnecessary leading : in PATH does no harm.

3.10.5. pass_environment

type: list of strings, names of environment variables

The environment variables listed here are read from the managers environment and passed unmodified to the environment of the process.

Entries are matched using shell-style wildcards via Python’s fnmatch implementation, so patterns like DISPLAY* or LD_* are allowed.

This is mainly useful for variables whose values are only known at manager startup time, or which should intentionally be inherited from the manager process instead of being hard-coded in the ln-config.

3.10.6. term_signal

Defines signal that causes termination.

type: string of [“SIG”] [ “INT” “TERM” …] or int signal, default: SIGTERM

When ln_manager stops a process, ln_daemon sends this signal to the process group of the started program.

Both signal names and numbers are accepted. Examples:

term_signal: TERM
term_signal: SIGINT
term_signal: 15

3.10.7. term_timeout

type: float, time in seconds

After sending term_signal, ln_daemon waits this long for the process to terminate on its own. If it is still running after that timeout, ln_daemon will send SIGKILL.

Increase this value for programs that need time to flush buffers, write files, or shut down external devices cleanly.

3.10.8. ready_regex

type: string, regular expression

The process is considered ready as soon as one output line on stdout or stderr matches this regular expression.

Matching is done line-by-line on the process output, using the process’ output_encoding. Carriage returns are normalized to newlines before matching.

This is usually the most precise way to model startup completion for servers or interactive tools that print a well-defined “ready” message.

3.10.9. ready_time

type: float, time in seconds

Alternative to ready_regex when the process has no reliable textual startup message.

After the process has been started successfully, ln_manager waits for the given time and then marks the process as ready automatically.

3.10.10. policy

type: string of [ “SCHED_FIFO” “SCHED_RR” … ]

scheduling policy. supported values depend on the node’s operating system.

Accepted values are either integers understood by ln_daemon, or symbolic names like SCHED_FIFO, SCHED_RR or SCHED_OTHER. Supported names depend on the target operating system and architecture.

This setting is applied together with priority.

3.10.11. priority

type: int

scheduling priority. supported values depend on selected policy and the node’s operating system. for linux policy FIFO valid values are 0 .. 99 where 99 is the highest possible priority.

3.10.12. affinity

type: list of int

List of CPU ids (zero based) where this process is allowed to run on.

Examples:

affinity: 0,1
affinity: [0, 1, 3]

Internally this is converted to a CPU affinity bitmask before it is sent to the daemon.

3.10.13. nice

type: int

Run command with an adjusted niceness, which affects process scheduling. Niceness values range from -20 (most favorable to the process) to 19 (least favorable to the process).

(compare man 1p nice, new in version 2.5.4)

3.10.14. warning_regex

type: string, regular expression

Whenever a line of process output matches this regular expression, ln_manager records a process warning and notifies the GUI.

Combine this with warning_msg to show a stable, user-friendly explanation instead of only the raw matching line. Use the no_warning_window flag if you want the warning to be logged but do not want a popup dialog.

3.10.15. warning_msg

type: string

Optional message shown when warning_regex matches.

If omitted, the matching output line itself is used as the warning text. If specified, ln_manager shows warning_msg and appends the matching line in parentheses.

3.10.16. documentation

type: string, URL

when provided, ln_manager GUI will display an additional button with label “documentation” for this process. when it is pressed the given URL will be passed to the xdg-open-command which can for example open a web-browser showing the page at that URL.

example:

process show pwd
flags: start_in_shell
node: localhost
command: pwd
documentation: https://man7.org/linux/man-pages/man1/pwd.1.html

when user presses this documentation button a browser should show that pwd man-page.

3.10.17. use_template

type: string, name of template

templates can help to avoid repetitions in your config files.

example:

process echoA
add environment: HOME=%(CURDIR)/home
flags: start_in_shell, no_error_on_successful_stop
command: echo "this is process A, with HOME=$HOME"
node: localhost

process echoB
add environment: HOME=%(CURDIR)/home
flags: start_in_shell, no_error_on_successful_stop
command: echo "this is process B, with HOME=$HOME"
node: localhost

using templates, this can be reduced to:

template local shell command
add environment: HOME=%(CURDIR)/home
flags: start_in_shell, no_error_on_successful_stop
node: localhost

process echoA
use_template: local shell command
command: echo "this is process A, with HOME=$HOME"

process echoB
use_template: local shell command
command: echo "this is process B, with HOME=$HOME"

the ln_manager will produce the exact same two processes for these two examples!

you can imagine that the directives from the named template are directly inserted at this use_template:-point!

templates are used in the order you name them – if the same directive is used in multiple templates for the same process, only the last one will have effect:

DELIBERATELY BAD EXAMPLE
template local shell command
add environment: HOME=%(CURDIR)/home
node: localhost
flags: start_in_shell

template no error on stop
flags: no_error_on_successful_stop

process echoA
use_template: local shell command
use_template: no error on stop
command: echo "this is process A, with HOME=$HOME"

this will probably not behave as intended, after template-instantiation it is equivalent to:

DELIBERATELY BAD EXAMPLE
process echoA
add environment: HOME=%(CURDIR)/home
node: localhost
flags: start_in_shell
flags: no_error_on_successful_stop
command: echo "this is process A, with HOME=$HOME"

and with that the flags: list will be set to only no_error_on_successful_stop.

this example should be fixed to look like this:

template local shell command
add environment: HOME=%(CURDIR)/home
node: localhost
add flags: start_in_shell

template no error on stop
add flags: no_error_on_successful_stop

process echoA
use_template: local shell command
use_template: no error on stop
command: echo "this is process A, with HOME=$HOME"

in this case the local shell command template will add start_in_shell to the flags-list and the no error on stop-template will add no_error_on_successful_stop. (the important thing here is the use of add before naming the flags-list)

a template can also provide “parameters” which can be used via the %(parameter-name)-syntax:

template local shell(cmd)
add environment: HOME=%(CURDIR)/home
node: localhost
add flags: start_in_shell
command: %(cmd)

template echo(message)
use_template: local shell("echo %(message)")

process echoA
use_template: echo("this is process A, with HOME=$HOME")

there the first template has a template-parameter named cmd, which is used in the value of the command:-directive. the echo-template has a parameter named message which is used when instantiating the local shell template. these parameters are positional parameters, they have to be specified at “call-site”(-> use_template:-site) in the same order as they are given when the template is defined.

this also demonstrates that templates itself can make use of other templates.

here an example showing how multiple parameters can be used:

template shell with home(home, cmd)
add environment: HOME=%(CURDIR)/%(home)
node: localhost
add flags: start_in_shell
add flags: no_error_on_successful_stop
command: %(cmd)

process echoA
use_template: shell with home("home_A", "echo this is process A, with HOME=$HOME")

3.10.18. change_directory

type: string, directory

this will change the current working directory of this process. if not specified /tmp will be used as working directory.

example:

process default process
node: localhost
flags: start_in_shell
command: pwd

should output /tmp as current working directory, while

process in local dir
node: localhost
flags: start_in_shell
command: pwd
change_directory: %(CURDIR)

will change the current working directory to be the directory of this config file!

3.10.19. flags

type: list of strings

This is the set of boolean process options.

Like all list-valued settings, flags: replaces the whole list while add flags: appends to the existing list. The latter is usually preferable when working with templates.

valid process flags:

forward_x11

With this flag the ln_manager tries to provide all necessary information such that the process can open a connection (open windows) on the same X-Server on which the manager GUI is currently displayed.

This sets all necessary environment variables and might even establish tcp-tunnels.

This is equivalent to ssh’s ForwardX11 option but without encryption!

Environment variables overwritten are: DISPLAY and XAUTHORITY. This is all that is needed for a simple X11 connection.

start_in_shell

the most efficient way to start a process is via operating system-specific system calls. this also guarantees the most exact control about the environment the process is started in.

but sometimes you want to execute the command-line via a shell. this is done when this flags is specified. the default system shell will be used to execute the command-line (/bin/sh).

this allows to execute internal shell-commands which have no own program-binary to start (like bash’s ulimit, if, ;…)

use_execvpe

when start_in_shell is not used, ln_daemon normally starts the executable exactly as specified in command. With use_execvpe it instead uses libc’s execvpe() syscall which searches the executable via the process’ PATH environment variable.

This is only useful for commands without a / in the executable name, for example python3 my_script.py.

no_pty

when this flag is specified, no pseudo-terminal will be allocated for this process – which is more resource efficient. BUT: typical standard-C libraries change their behaviour depending on whether they are used within a terminal or not. for example: they switch their stdout-buffering from line-based to page-based - which means that the process-output will only be visible when a complete memory-page is filled (~4kB). On windows there is nothing comparable to a pseudo-terminal (the win32-console window is the only available terminal).

use_vte

when this flag is given a full-featured terminal-emulator-widget is used to display the process output within the ln_manager-gui. this will only have an effect when the python-vte package is available on the manager-gui-host. this terminal widget allows processes to display colors and advanced console-based user interfaces (like emacs or vim).

no_vte

disable the VTE-based terminal widget for this process even if VTE is available and enabled globally. The plain text output widget will be used instead.

remove_color_codes

you can remove color-escape-sequences from process output if you are not interested in having colored process-output and/or you don’t use the use_vte flag.

no_state_led

this flag avoids the display of a square (red, yellow, green) indicator box for this process.

no_warning_window

as soon as you specify a warning_regex a dialog-window will pop-up every time that warning_regex matches a process-output line. by using this flag the display of the warning-dialog can be disabled.

no_error_on_stop

when a process terminates on its own - without the user requesting it - its interpreted as an error if this flag is not specified

no_error_on_successful_stop

process is allowed to stop on its own. this is not considered an error as long as the process returns with return value 0.

disable_stop

this flag disabled the the stop-button in the manager gui.

user_stop_is_successful_stop

this is useful in combination with start_on_successful_stop directive.

forward_x11_to_gui

similar to forward_x11, but the X11 connection is forwarded to the GUI session that triggered the start request. If there is no separate GUI session context, it falls back to the manager’s own display.

This is useful when the manager process runs on one machine but a user opens the GUI remotely and wants X11 applications to appear on that user’s display.

set_user_and_home

add USER and HOME to the started process from values reported by the daemon on the target host.

This is especially useful for processes that expect a meaningful home directory, for example GUI applications, tools that read ~/.config, or programs that create cache files below $HOME.

no_ln_ld_library_path

by default ln_manager ensures that LD_LIBRARY_PATH contains the path to the LN runtime libraries it is using. This flag disables that automatic addition.

Use this if the target process must run with a fully custom library search path or if manager and target do not share a compatible filesystem layout.

blocking_output

request blocking handling of process output inside ln_daemon.

Without this flag ln_daemon may keep reading process output even when the manager-side output buffer is already full. With this flag the daemon instead applies backpressure and waits for buffer space before consuming more output. This is useful for interactive processes or tests where output loss or skipping is unacceptable.

no_skip_display

disable ln_manager’s display-skipping optimization for very chatty processes.

Normally the GUI may skip parts of already queued output if too much data is buffered. With this flag all output should stay visible, at the cost of more UI work and memory pressure.

io_scripts_dont_enforce_blocking_output

processes with I/O scripts automatically enable blocking_output and no_skip_display so the scripts can reliably react to the full output stream. This flag disables that automatic enforcement.

dont_stop_dependent_procs

when stopping a process, ln_manager normally first stops dependent processes that list it in depends_on_restart. With this flag that automatic stop propagation is disabled for this process.

dont_translate_backspace_to_delete

when typing into a process terminal from the GUI, ln_manager normally translates the backspace key from ^H to DEL. This flag disables that translation and forwards the raw backspace character unchanged.

disable_gdb_run

for processes started with start_tool: gdb the GUI can automatically send a run command when the process is started. This flag disables that convenience behavior.

disable_gdb_rerun

when such a gdb-backed process is already running and the user starts it again, the GUI normally tries to send a gdb rerun sequence instead of restarting gdb itself. This flag disables that rerun shortcut.

no_default_templates

do not apply globally configured default process templates to this process.

no_host_default_templates

do not apply host-specific default process templates to this process. Global default templates are still applied unless no_default_templates is also set.

3.10.20. depends_on

type: list of strings, process- or state names

all the processes listed here need to be in ready state (or started if they don’t have a ready_regex or ready_time) before this process can be started. if you try to start this process, the ln_manager will make sure to start all of these dependencies. if any of these dependencies terminate later, this process gets a error-flag to signal to the user that it probably can no longer function as expected. this error disappears as soon as all dependencies are ready again.

3.10.21. depends_on_restart

type: list of strings, process- or state names

similar as depends_on but here a dependency that terminates will permanently set an error-flag for this process. this signals to the user that this process needs to be restarted before it can function again. if a user deliberately stops one of these dependencies, then the ln_manager will first stop this process, as it can be of no more use when configured like this.

3.10.22. start_before

type: list of strings, process names

before this process starts, all listed processes will be started and waited upon until they stop successfully. these other process all need to use the no_error_on_successful_stop-flag.

3.10.23. start_on_ready

type: list of strings, process- or state names

the processes or states listed here will be started as soon as this process reaches its ready state. They do not need to keep running for the whole lifespan of this process and are not needed for this process to be in a valid state.

Use-cases include starting small shell-scripts or other helper programs every time when this process is started. It is advisable to specify the no_error_on_stop-flag for processes listed here!

since version 0.2.5

3.10.24. start_on_successful_stop

type: list of strings, process names

the processes listed here will be started as soon as this process stopped successfully. For this to work you also need to use the flag no_error_on_successful_stop. these are NOT started when the user manually stops this process.

if you want to have these processes also started when a user manually stops this process, then you have to use flag user_stop_is_successful_stop (which is new in version 2.5.3).

since version 1.1.6

3.10.25. provides

type: list or strings

Declare that this process can provide a named service or topic on demand.

This integrates with ln_manager’s provider lookup: if something requests a provider for that name and no running client currently provides it, ln_manager can start the configured process automatically.

Each entry is either just a name or NAME:PRIORITY:

provides: camera/image_raw
provides: my/service:10

If multiple configured processes or states provide the same name, the one with the highest priority wins. When no explicit priority is given, priorities are assigned in config-file order.

3.10.26. output_encoding

type: string, default: utf-8

what text encoding does this process use for its otuput to stdout / stderr.

3.10.27. output_logfile

type: string

a filename where ln_manager should write all collected stdout/stderr from that process. use output_logfile_size_limit to limit the size of that file and output_logfile_keep_count to set how many files to keep when that size limit is reached.

3.10.28. output_logfile_size_limit

type: size, default: 10MB

max size in bytes of the output_logfile. you can also use common post-fixes like MB or GB. if the logfile reaches this size-limit, a new logfile will be started. use output_logfile_keep_count to set how many log files to keep around before starting to delete them.

3.10.29. output_logfile_keep_count

type: integer, default: 2

number of log files to keep if output_logfile_size_limit is set. older log files will get a timestamp in the form of .YYYYmmdd_HHMMSS attached to their filenames. the timestamp is of the moment when a new log file was started.

3.10.30. output_buffer_size

type: integer, default: 100kB

buffer size in bytes for ln_daemon for collecting output from this process. output needs to be sent from daemon to ln_manager. increase this buffer size if the network connection towards the manager is too slow or your process generates lots of output! (e.g. more that 100kB per max_output_frequency)

3.10.31. max_output_lines

type: int, number of lines, default: 1000

number of lines in ln_manager’s VTE-widgets (terminal widget showing process output) scroll-back buffer.

3.10.32. max_output_frequency

type: float, frequency in Hz, default: 10Hz

try to batch process output to send updates towards ln_manager only at this rate. faster process output updates will be sent if fill-level of output_buffer` reaches 75%.

3.10.33. add_io_script

this adds an I/O script to this process. I/O scripts can be used to send pre-defined text-input to this process if it is started/ready.

this can be useful for “uncooperative” or foreign processes that provide no LN-service-interface, but react on text input. examples include any remote-shells (like an interactive bash shell via ssh, a serial terminal to a linux text console or any telnet connection) or programs which provide a text-based / terminal-based text-interface.

I/O scripts have a per-process unique name (given by the first #-comment line in the script itself).

here an example I/O script to login on a linux serial console and execute a command:

process ifconfig via serial console
node: localhost
command: /home/schm_fl/foreign_packages/picocom/2.1/sled11-x86_64-gcc4.x/picocom -b 115200 /dev/ttyUSB0
ready_regex: Terminal ready
add_io_script: [
  # autostart
  # send a single newline to re-trigger display of login prompt:
  send_eval: \x04
  wait: login:
  send: root
  wait: Password:
  send: secret-password
  # wait for shell-prompt:
  wait_regex: ^root@.*#
  send: ifconfig
]

this script is named autostart so it will be started as soon as picocom outputs the Terminal ready string which matches the ready_regex.

the script will then send a single 0x04-byte (corresponds to a user pressing Ctrl-d signaling “end of transmission”) and then wait for text output login: to appear. after that it will send the username root followed by a newline, then wait for the text Password: and send a password. next it waits for a regular expression which should match the remote’s shell PS1 prompt to then send the ifconfig command.

you can add multiple I/O scripts to a single process, but they have to have a unique name. if no name is provided an automatically generated name will be used.

this means that you can only have one script that is called autostart.

here the list of available I/O script commands:

send: TEXT send some text to stdin of this process. a newline will be appended to TEXT.
wait: TEXT wait until TEXT appears in the output of this process.
wait_regex: REGEX wait until the output of this process includes a match for the given regular expression REGEX. (those are python regex’es with the re.M-multiline flag set)
pause stop executing this script here. user can select the next line and continue executing via the LN-manager-ui.
insert: TEXT will insert TEXT (plus newline) into the output of this process. this text will not be sent to the process, it will only be shown in the LN-manager-ui.
_eval:-variants are available for all commands but pause: send_eval: TEXT for example will only send TEXT without a trailing newline! but now TEXT can include python-escape-sequences for special characters like \n or \t see table of python escape sequences.
if: TEXT followed by a block of script commands terminated with an endif-line or further elif: TEXT blocks. this can be used to wait for multiple expressions and react on which specific expression was found. example:
```
if: 1+1
  send: 2
elif: 2+2
  send: 4
elif: 3+3
  send 6
endif
```
this will wait for the process to output either 1+1, 2+2 or 3+3 and then send the respective response. there can not be an “empty” else: block as we can not wait for the empty string. as with wait there are _regex and _eval variants for if and elif. “if blocks” can also be nested. an if-block without any elif blocks behaves exactly the same as the corresponding wait command.

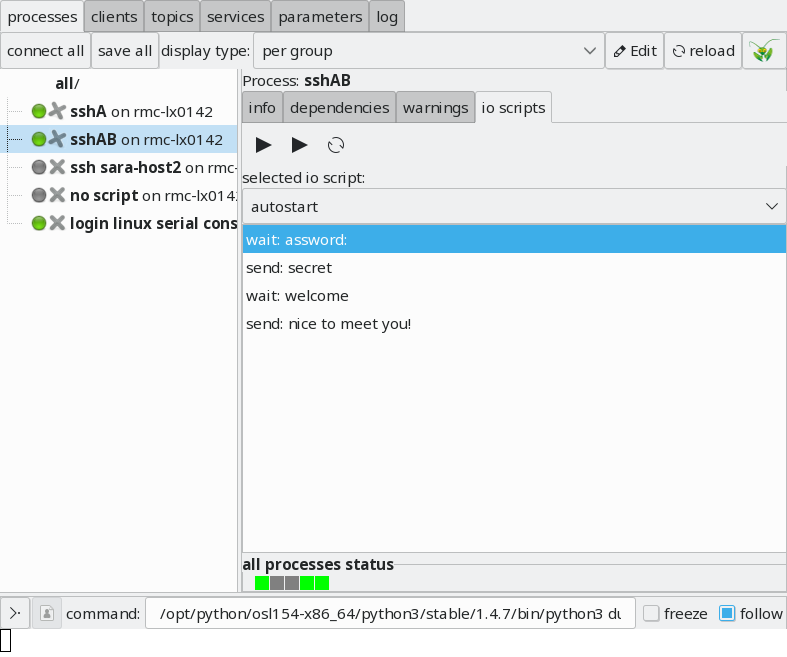

processes that have I/O scripts configured provide an additional io scripts-tab when selected in the LN-manager-gui:

the left-most “play” tool-button can be used to start & stop running of scripts. the next “play” tool-button can be used to only execute the currently selected script-line (you can also just double-click on a script line for this). the third tool-button can be used to restart an I/O script from the beginning.

I/O scripts can only be started when the corresponding process is in started / ready state. stopping a process also stops I/O scripts.

3.10.34. add_io_script_file

same as add_io_script but here the I/O script is read from the specified file:

process some process
...
add_io_script_file: %(CURDIR)/remoteHost_login
add_io_script_file: %(CURDIR)/remoteHost_setup_network

this will add two new scripts named remoteHost_login and remoteHost_setup_network` to this process.

contents of file remoteHost_login could look like this:

wait: password:
send: secret-password

per default the filename will be used to choose a unique script-name. if you want to use a different script-name (especially useful if you want to name it autostart), you can explicitly provide a script name before the colon ::

process some process
...
add_io_script_file autostart: %(CURDIR)/remoteHost_login

3.10. process section

3.10.1. command

3.10.2. alt_command NAME

3.10.3. node

3.10.4. environment

3.10.5. pass_environment

3.10.6. term_signal

3.10.7. term_timeout

3.10.8. ready_regex

3.10.9. ready_time

3.10.10. policy

3.10.11. priority

3.10.12. affinity

3.10.13. nice

3.10.14. warning_regex

3.10.15. warning_msg

3.10.16. documentation

3.10.17. use_template

3.10.18. change_directory

3.10.19. flags

3.10.20. depends_on

3.10.21. depends_on_restart

3.10.22. start_before

3.10.23. start_on_ready

3.10.24. start_on_successful_stop

3.10.25. provides

3.10.26. output_encoding

3.10.27. output_logfile

3.10.28. output_logfile_size_limit

3.10.29. output_logfile_keep_count

3.10.30. output_buffer_size

3.10.31. max_output_lines

3.10.32. max_output_frequency

3.10.33. add_io_script

3.10.34. add_io_script_file

3.10. `process` section
